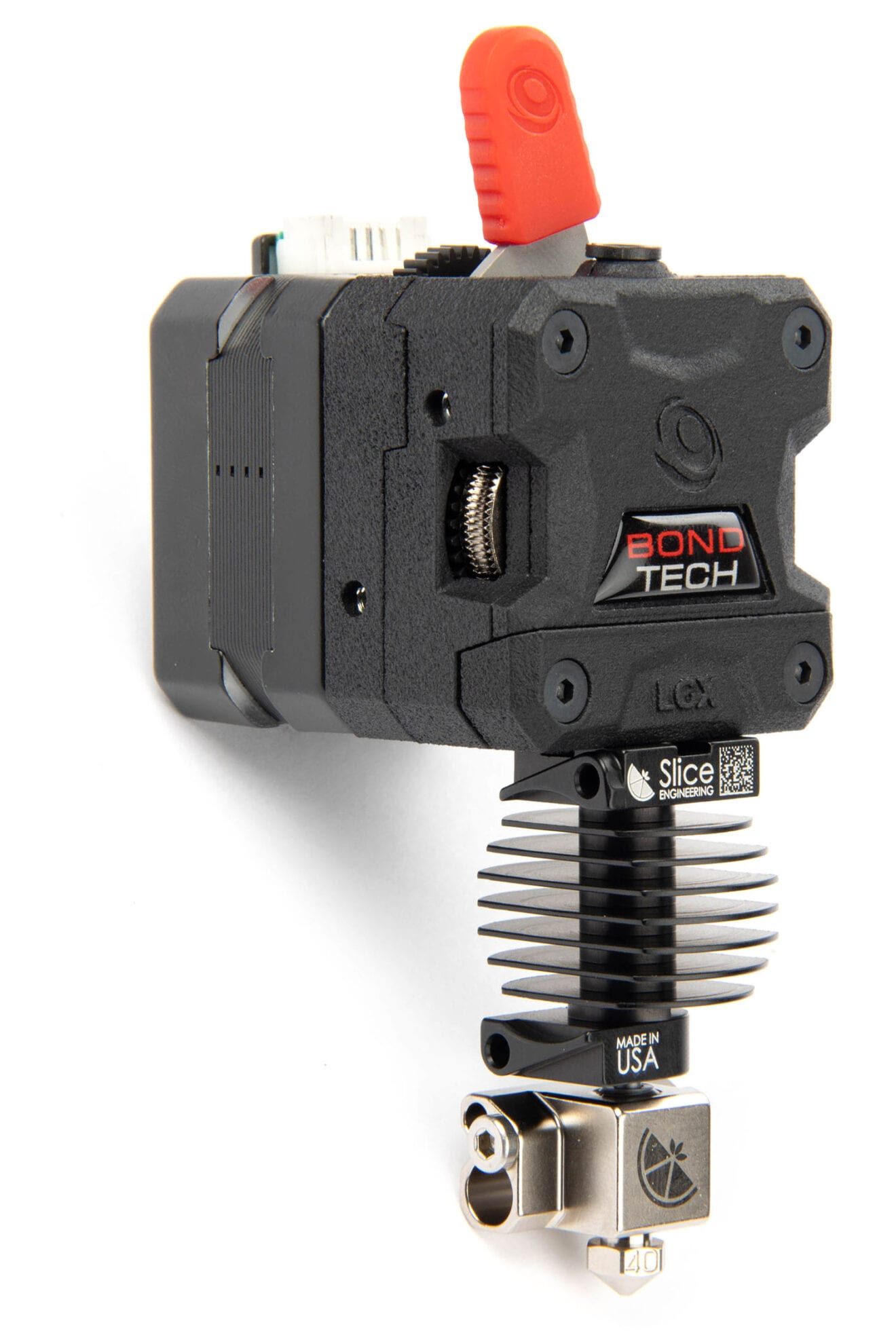

The Bondtech LGX™ Large Gears eXtruder is the first of Bondtech's filament feeders to use its new Dual Drive Technology based on larger drive gears. NOTE: This extruder only supports 1.75 mm size filament.

Bondtech eXtruder features:

• Larger drive wheels, for increased filament grip
• Filament pre-tension lever, for repeated results
• Multi-function interface socket, for tool or application quick swap
• Drive wheels’ maintenance windows, for easy cleaning
• Compact, light and symmetric design, for increased performance and compatibility
• Multiple mounting hole patterns, for easy and flexible setup
• A small step for a greener Future, craft boxes without bleaching and no coating

You can read more about the new

LGX™ features by clicking here. Additional product info is below.

What's in the box:

• 1x LGX™ feeder
• 1x Custom LDO Nema17 25mm pancake stepper motor
• 1x Bowden Interface Plug (with threaded metal push-fit)
• 1x Direct Drive Interface Plug (for Slice Engineering hotends)
• 1x 2mm Hex Key (recommended tool)
• 1x Product Line Information Brochure
• 1x Powered by Bondtech sticker
• 3x M3x30 mm Low Head screws;
• 4x M3x18 mm Stud with 5 Hex with M3x4 thread;
• 30mm PTFE tube to use in the Direct Drive Interface Plug.

About LGX™ Extruder

• e-steps value : 400 on 16 bit micro-stepping setups; 800 on 32 bit micro-stepping setups
• Drive wheels : hardened steel
• Materials compatibility : abrasive; rigid; semi-flexible; flexible; and soft
• Mounting holes : M3
• Mounting patterns : bottom anterior (2 points); left (2 points), right (2 points), front (4 points), back (4 points)
• Holes on the sides of the LGX™ : 5 mm depth
• Holes on the bottom of the LGX™ : 12 mm depth
• Retraction speed : 35 mm/s
• Retraction distance (bowden) : ~5 mm (0.4 + tube length x 0.15)
• Retraction distance (direct drive) for rigid materials : 0.4 mm
• Retraction distance (direct drive) for soft materials : 3 mm
• Max operating temperature : 80°C
• LGX™ DD net weight : 218.6 g
• LGX™ B net weight : 224 g
• Package measurements : 80x103x73 mm
• Package weight : 269 g
• Download the LGX Technical Drawings here

• USING A PLATE BETWEEN THE EXTRUDER AND THE STEPPER MOTOR

  • Max thickness : 2.6 mm
  • Optimal Thickness : between 0.3 and 2.3 mm;

  Optimal Thickness allows full teeth engagement between the motor gear and the main double gear.

LDO Stepper Motor for Bondtech LGX™

• PH-06AWJ connector
• 2 phases
• DC 5.5 V
• Max 1.0A/phase
• Download the stepper motor Technical Data Sheet here

STEP Files To Download

Click the links below to download STEP files with simplified geometries of each available setup.

• LGX™ Direct Drive with Copperhead screw mount hotend;
• LGX™ For Flexibles with Right Hands ide heatsink and fan;
• LGX™ For Flexibles with Left Hand side heatsink and fan;
